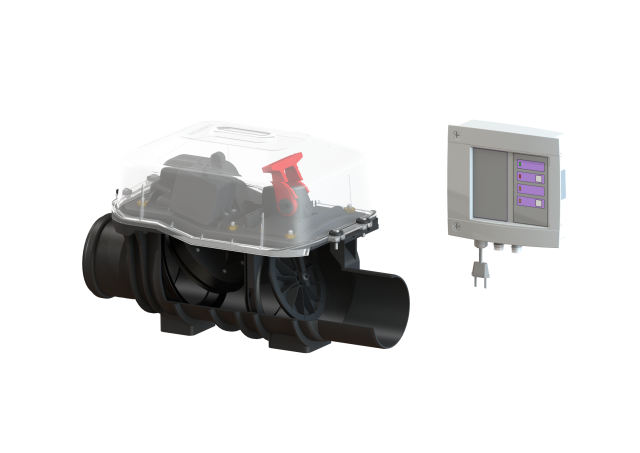

The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit.
Variant
Emergency closure: yes
Pump control: Control unit
Motor-driven backwater flaps: 1
Mechanical backwater flaps: 1
General characteristics
Colour: black
Standard: EN 13564
Nominal size (DN): 125
Outer diameter (OD): 125 mm
Type of wastewater: with sewage
Installation situation: exposed drainage pipe
Backwater protection: Type 3
Type de protection moteur: IP 68 (3m/48h)
Cable length: 5 m
Dimensions
Net weight: 10 kg
Vertical drop between inlet and outlet: 9 mm
Length: 642 mm
Width: 350 mm
Height: 422 mm
Packaging dimension: length: 785 mm
Packaging dimension: width: 385 mm
Packaging dimension: height: 465 mm
Coverage features
Type of cover: Protective cover
Cover material: Polymer
Colour of cover: transparent
Width of cover: 350 mm
Height of cover: 165 mm
Length of cover: 542 mm
Locking: Clip closure
Control
Control unit: Standard
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Log book function: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
