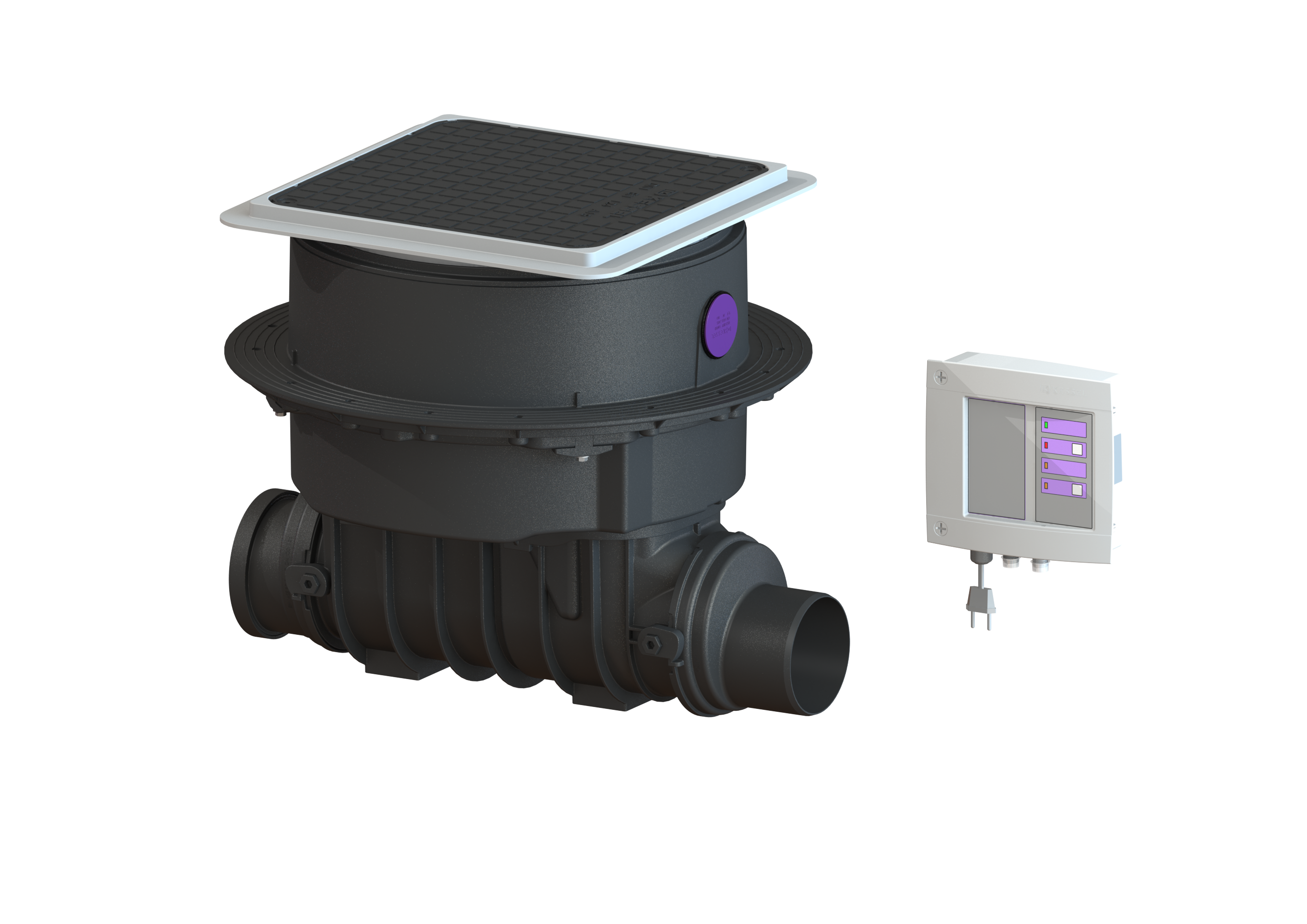

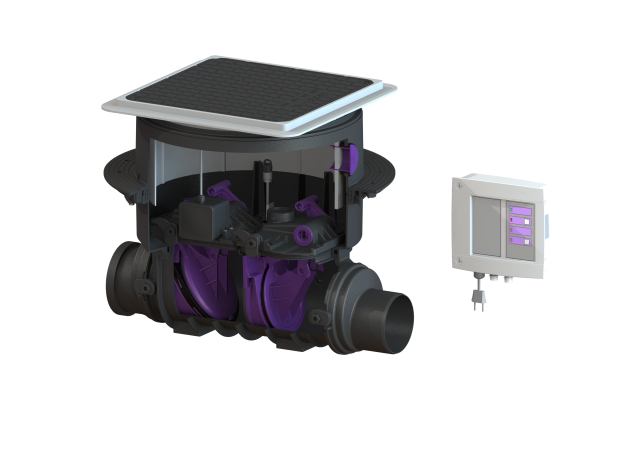

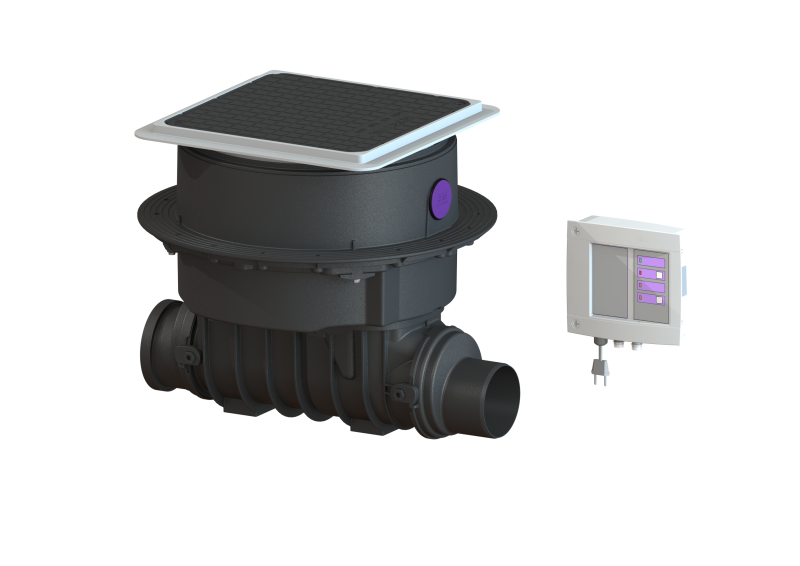

The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit.
General characteristics
Colour: black
Standard: EN 13564
Nominal size (DN): 125
Outer diameter (OD): 125 mm
Type of wastewater: with sewage
Installation situation: floor slab installation
Backwater protection: Type 3
Type de protection moteur: IP 68 (3m/48h)
Cable length: 5 m
Dimensions
Net weight: 18 kg
Cutout dimension, width: 750 mm
Cutout dimension, length: 750 mm
Vertical drop between inlet and outlet: 9 mm
Installation depth: 486 - 640 mm
Type of height adjustability: vertically adjustable upper section
Length: 645 mm
Width: 590 mm
Packaging dimension: length: 644,5 mm
Packaging dimension: width: 590 mm
Packaging dimension: height: 348 mm
Coverage features
Type of cover: Cover plate
Cover material: Polymer
Colour of cover: black
Width of cover: 384 mm
Height of cover: 42 mm
Length of cover: 384 mm
Locking: locked
Load class: L 15 (EN 1253-1)
Tightness: surface water resistant
Control
Control unit: Standard
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Log book function: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
