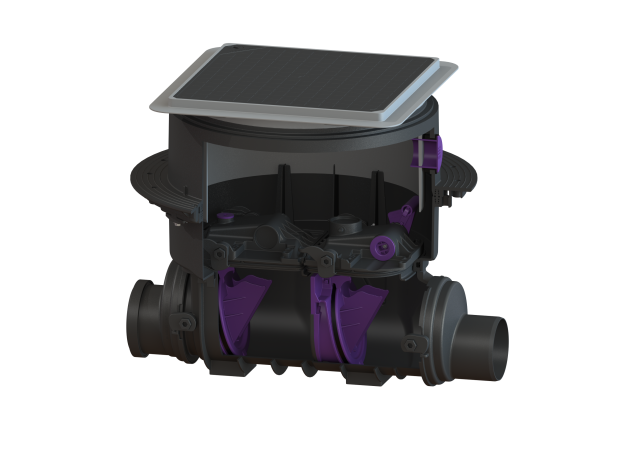

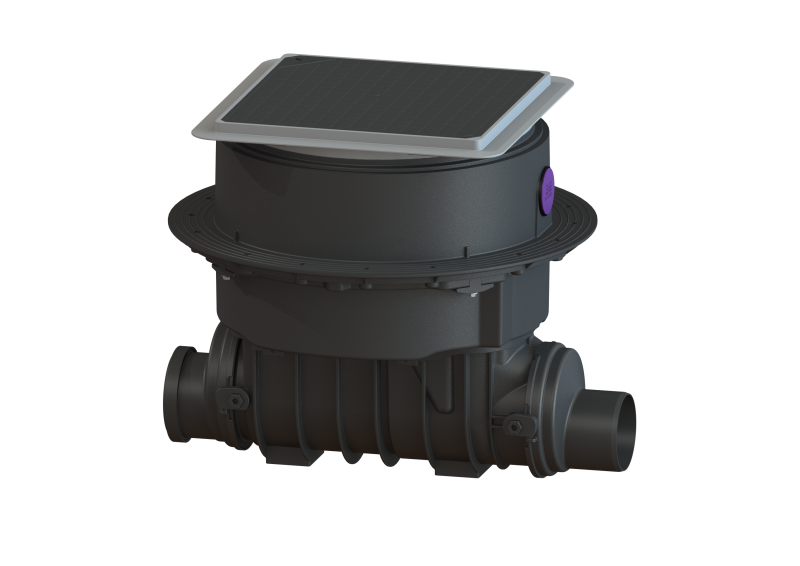

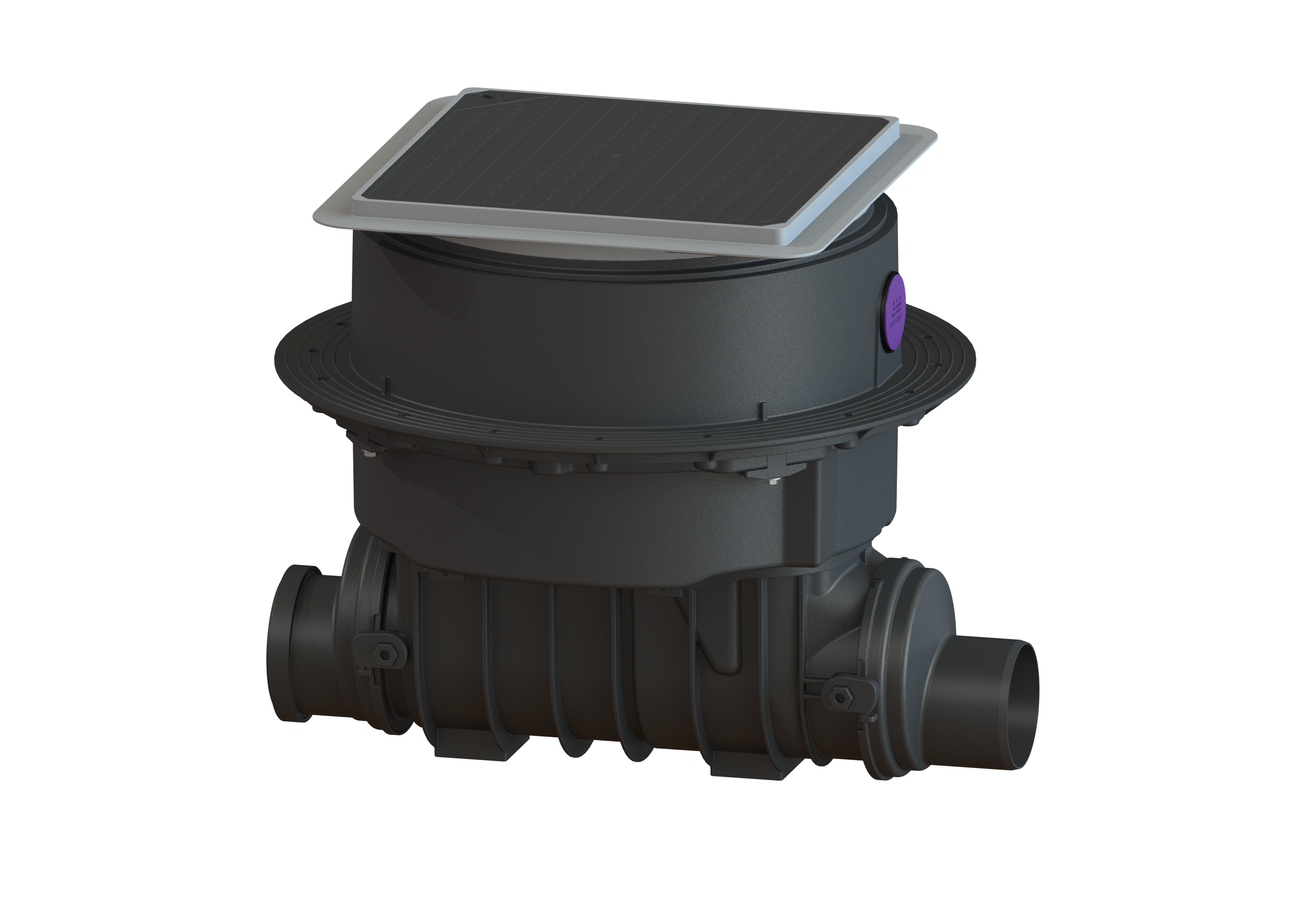

The premium backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix FKA premium backwater valve or a Pumpfix F backwater pumping station.
General characteristics
Colour: black
Standard: EN 13564
Nominal size (DN): 100
Outer diameter (OD): 110 mm
Type of wastewater: without sewage
Installation situation: floor slab installation
Delivery state: Installation-ready (connection parts must be connected on site)
Backwater protection: Type 2

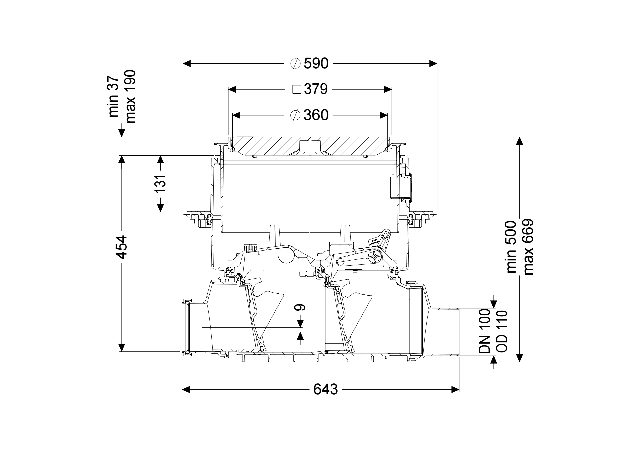

Dimensions
Net weight: 13,03 kg
Gross weight: 15,83 kg
Groundwater resistant from lower edge of base section: 3000 mm
Cutout dimension, width: 750 mm
Cutout dimension, length: 750 mm
Vertical drop between inlet and outlet: 9 mm
Installation depth: 516 - 669 mm
Type of height adjustability: vertically adjustable upper section
Length: 642 mm
Width: 590 mm
Packaging dimension: length: 785 mm
Packaging dimension: width: 615 mm
Packaging dimension: height: 550 mm
Tank/drain body
Socket version: including spigot and socket
Coverage features
Type of cover: Cover plate
Cover material: Polymer
Colour of cover: black
Width of cover: 366 mm
Length of cover: 366 mm
Locking: Lock & Lift
Load class: L 15 (EN 1253-1)
Tightness: surface water resistant
