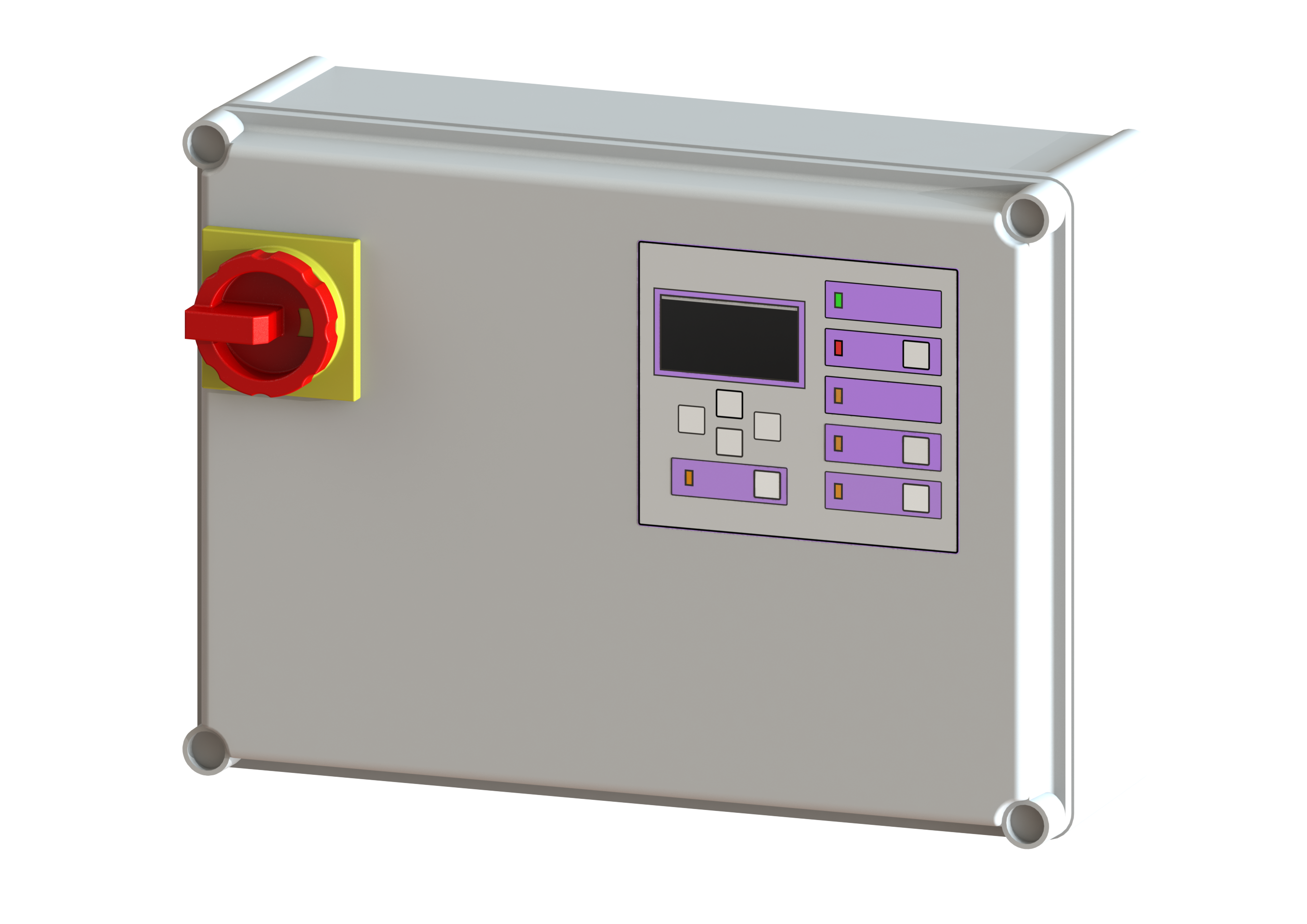

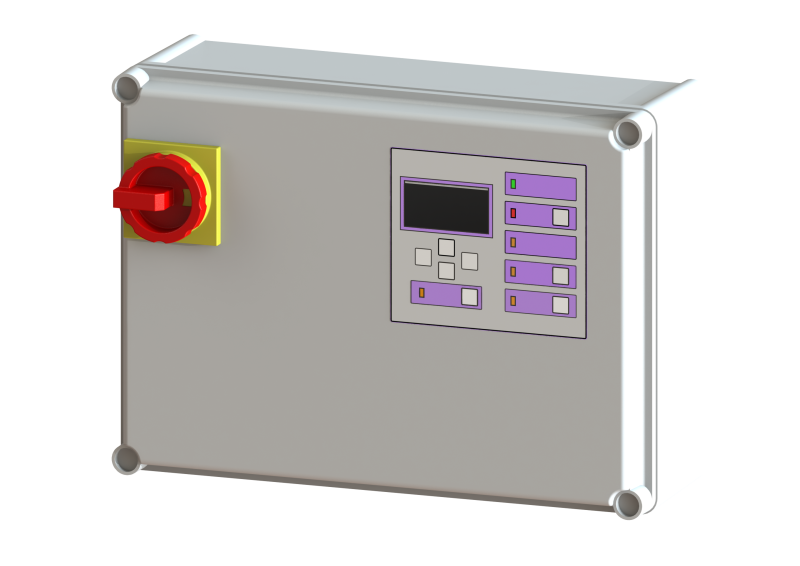

User-friendly control unit with optical and acoustic warning.
General characteristics
System type: Duo
Dimensions
Net weight: 3,5 kg
Gross weight: 5 kg
Packaging dimension: length: 420 mm
Packaging dimension: width: 365 mm
Packaging dimension: height: 230 mm
Pumping device
Connection type: Direct connection
Type of fuse required (electrical protection): C 20 A
Rated current: 6,3 - 10 A
Control
Control unit: Comfort Plus
Motor protection switch: yes
Standby power: 5 W
Type of fuse required (RCD): 30 mA
Protection class control unit: IP 54
Connection type: Direct connection
Potential-free contact: yes
GSM interface: yes
USB interface: yes
Log book function: yes
Multi-line display: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
