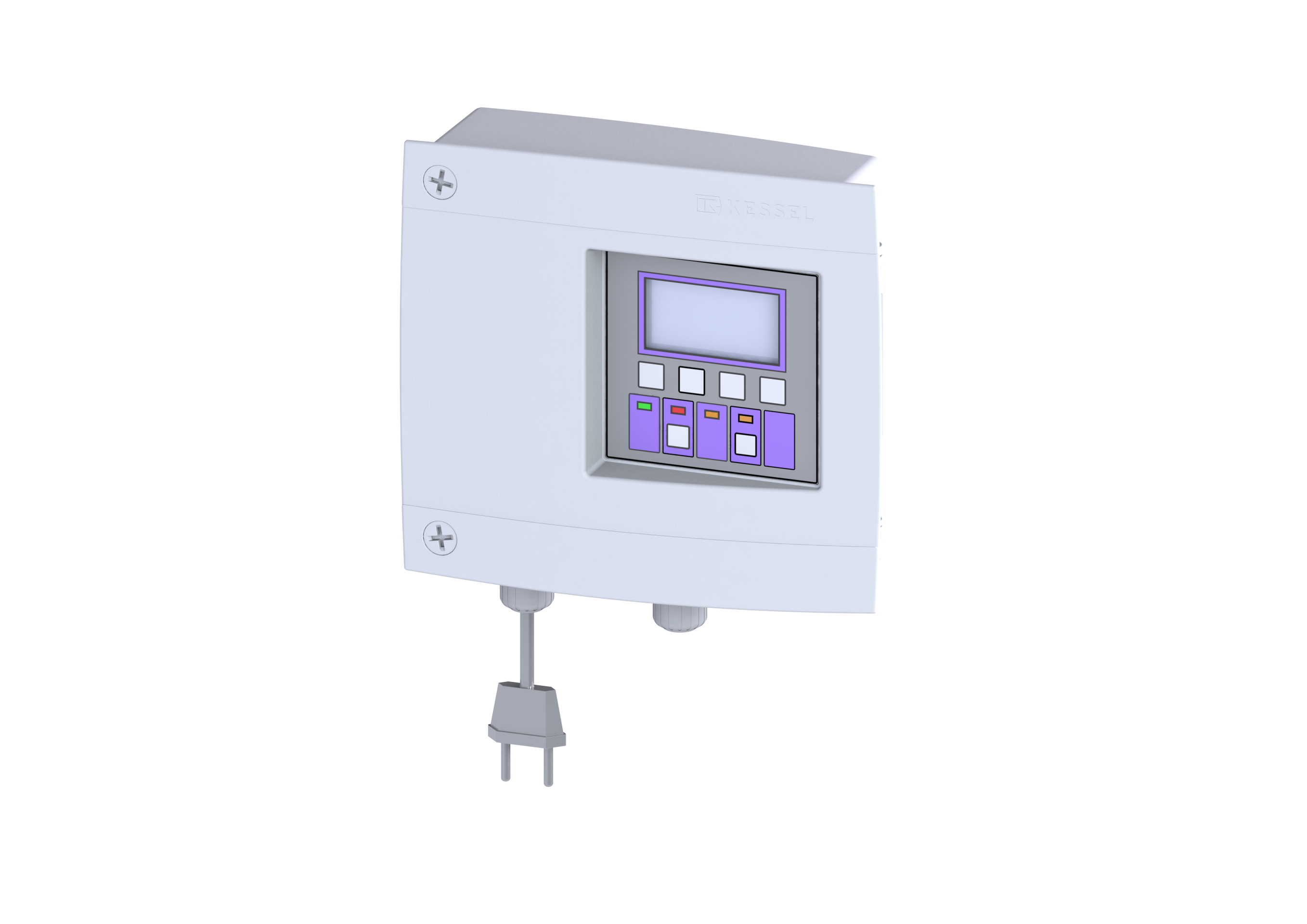

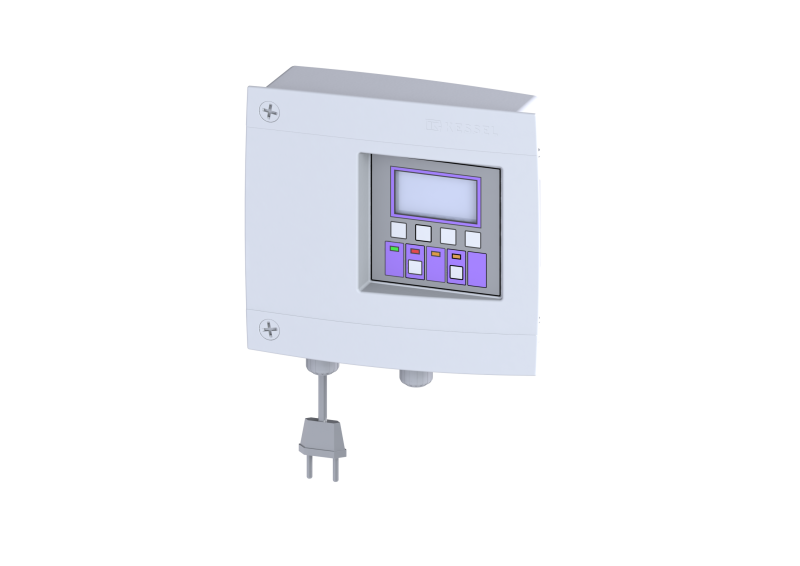

SonicControl control unit for grease separator, 230 V
SonicControl control unit with expansion board for grease separators from 10/2011.
Control:
Operating voltage: 230 V
Mains frequency: 50 Hz
Self-diagnosis system (SDS): yes
Battery backup: yes
Multi-line display: yes
Logbook function: yes
USB interface: yes
GSM interface: yes
Potential-free contact: yes
Type of fuse required (electrical protection): C 16 A
Protection class control unit: IP 54
Length of control unit mains cable: 1.45 m
Dimensions
Net weight: 1,14 kg
Gross weight: 1,47 kg
Packaging dimension: length: 390 mm
Packaging dimension: width: 190 mm
Packaging dimension: height: 310 mm
Pumping device
Type of fuse required (electrical protection): C 16 A
