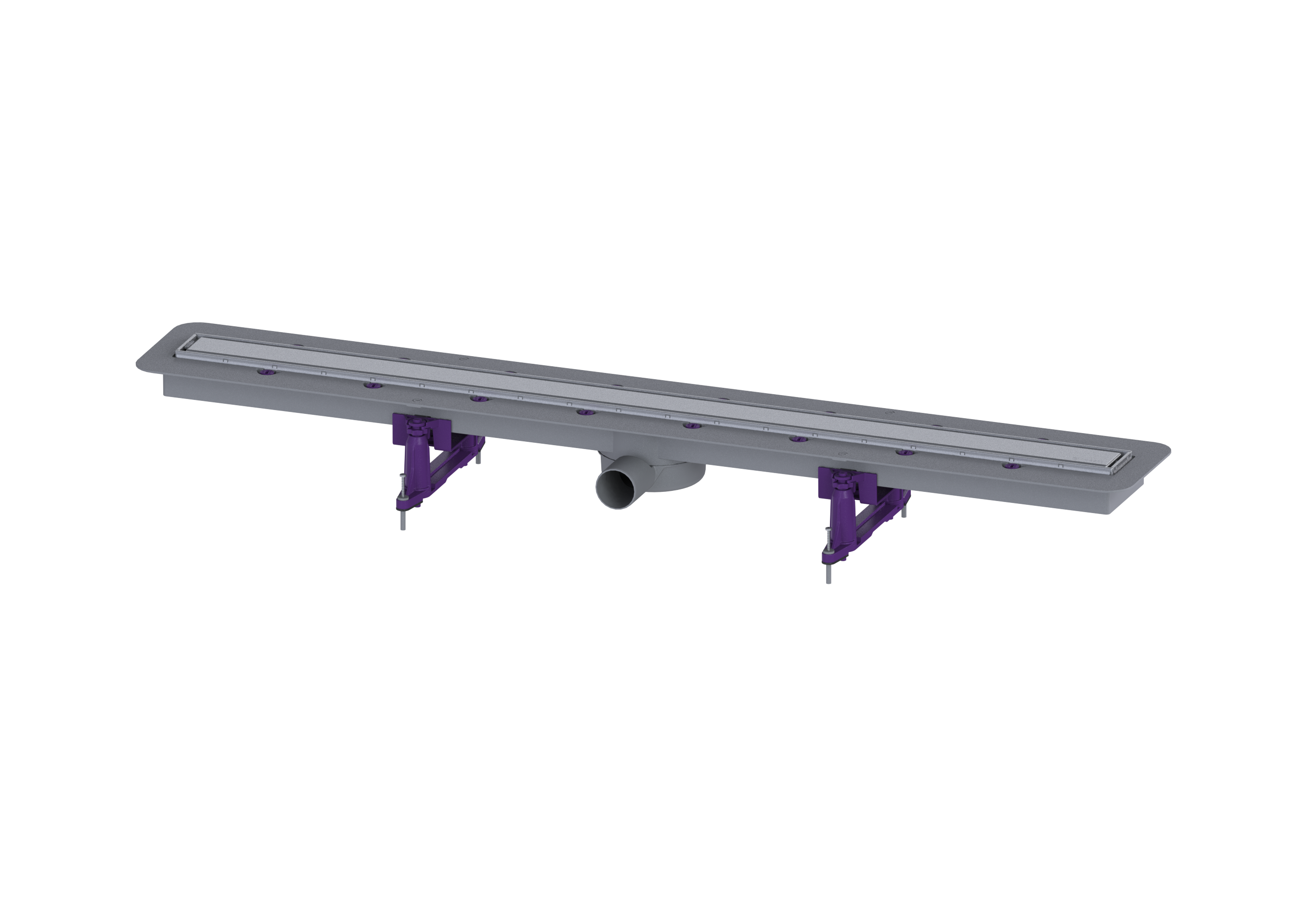

The Linearis Comfort shower channel with welded on drain body made of ABS is suitable for indoor linear drainage. If inserted upside down, the stainless steel insert can be tiled individually. Including prepared seepage water openings and odour trap.
Variant
System: 125
Seepage opening: open
Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534
Waterproofing layer on the drain body: Connection flange
Water exposure class in accordance to DIN 18534-1 (up to and including): W2-I
Sealing water height: 22 mm
Discharge rate (l/s) with 10 mm threshold: 1,1
Discharge rate (l/s) without threshold: 1 mm
General characteristics
Nominal size (DN): 50
Outer diameter (OD): 50 mm
Odour trap: included
Dimensions
Net weight: 4,54 kg
Gross weight: 5,26 kg
Outer dimension, length: 1215 mm
Width: 243 mm
Height: 107 mm
Packaging dimension: length: 1280 mm
Packaging dimension: width: 260 mm
Packaging dimension: height: 130 mm
Tank/drain body
Number of outlets: 1
Material of drain body: ABS
Coverage features
Type of cover: Stainless steel cover
Cover material: Stainless steel 14301
Colour of cover: silver
Frame material: Stainless steel 14301
Locking: lockable
Load class: K 3 (EN 1253-1)
Grating design: optionally tileable
Rim width: 66 mm
Rim length: 1150 mm
Upper section material: ABS
