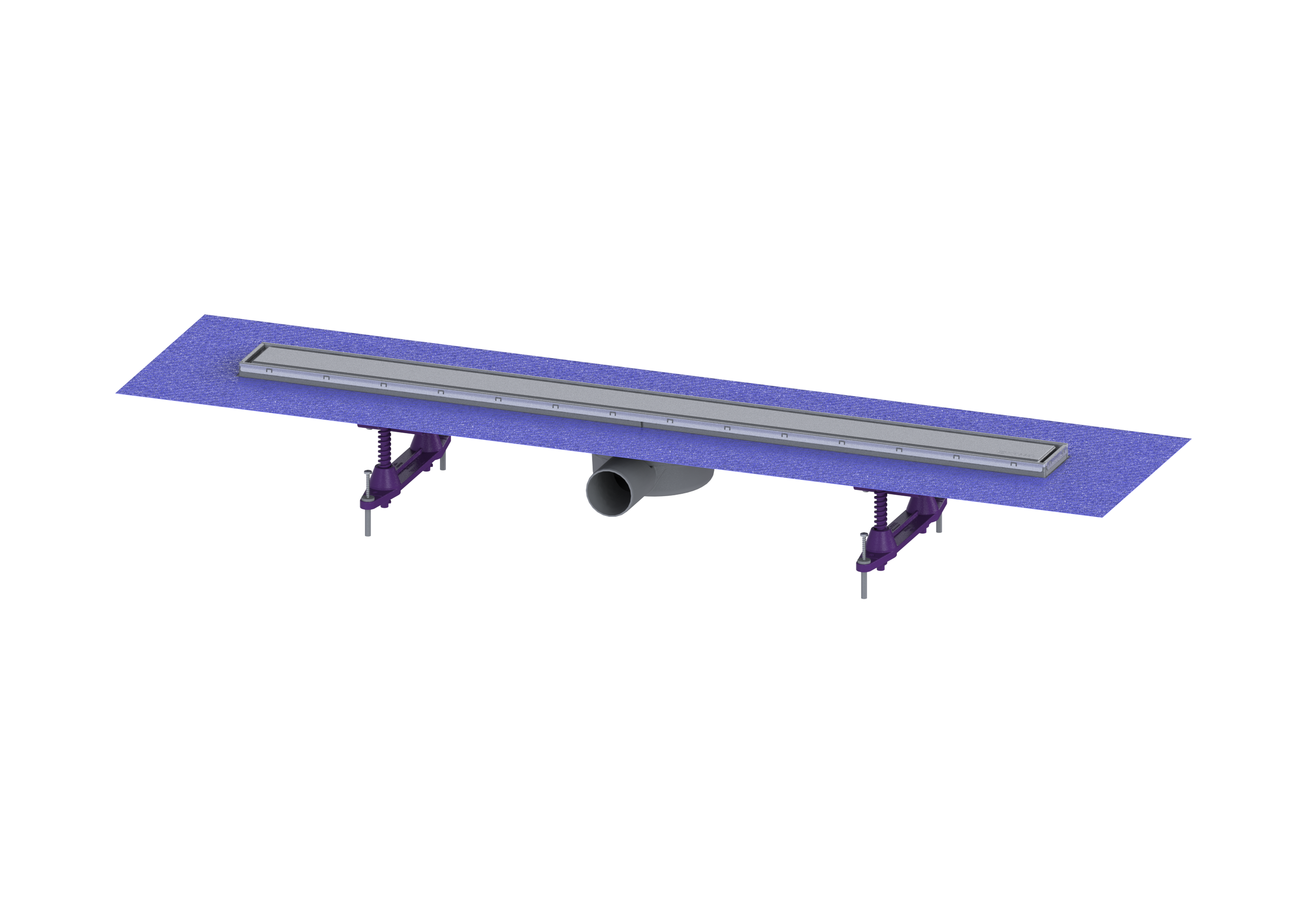

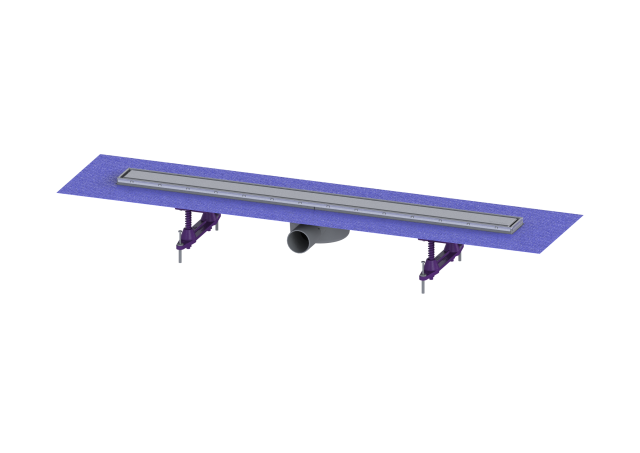

The Linearis Compact shower channel with welded on drain body made of ABS is suitable for indoor linear drainage. If inserted upside down, the stainless steel insert can be tiled individually. Including prepared seepage water openings and Multistop odour trap.
Variant
Seepage opening: prepared
Waterproofing layer on the upper section: Factory-fitted sealing collar (WaD) according to DIN 18534
Waterproofing layer on the drain body: Connection flange
Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I
Sealing water height: 22 mm
Discharge rate (l/s) with 10 mm threshold: 0,6
Discharge rate (l/s) with 20 mm threshold: 0,7
Discharge rate (l/s) without threshold: 0,5 mm
General characteristics
Nominal size (DN): 50
Outer diameter (OD): 50 mm
Odour trap: Multistop

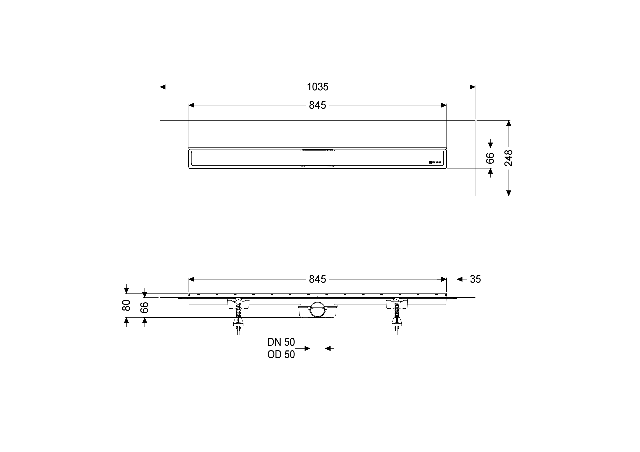

Dimensions
Net weight: 2,22 kg
Gross weight: 3,58 kg
Outer dimension, length: 915 mm
Installation depth: 80 - 140 mm
Width: 191 mm
Height: 80 mm
Packaging dimension: length: 1280 mm
Packaging dimension: width: 260 mm
Packaging dimension: height: 130 mm
Tank/drain body
Material of drain body: ABS
Coverage features
Type of cover: Stainless steel cover
Cover material: Stainless steel 14301
Colour of cover: silver
Frame material: Stainless steel 14301
Load class: K 3 (EN 1253-1)
Grating design: optionally tileable
Rim width: 66 mm
Rim length: 850 mm
Max. flooring height: 15 mm
Upper section material: ABS
