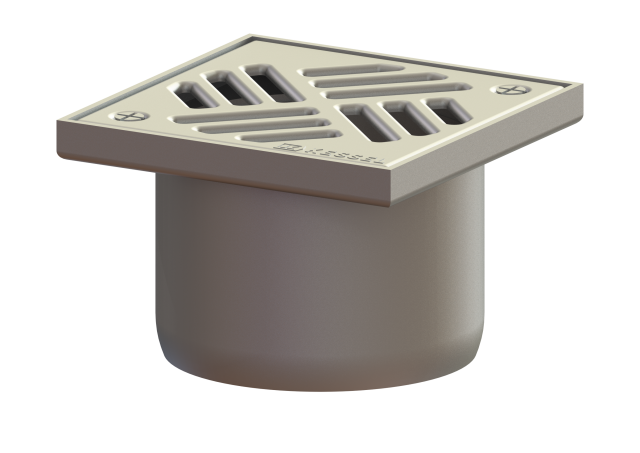

Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage.
Variant
System: 125
Waterproofing layer on the upper section: Connection flange

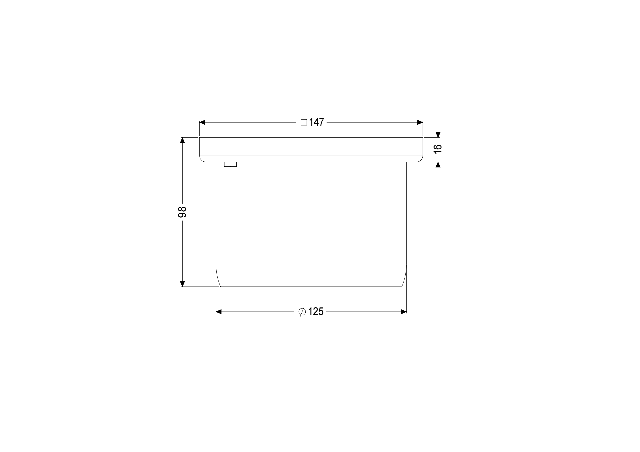

Dimensions
Net weight: 1,18 kg
Gross weight: 1,28 kg
Height: 100 mm
Packaging dimension: length: 215 mm
Packaging dimension: width: 190 mm
Packaging dimension: height: 120 mm
Coverage features
Type of cover: Slotted cover
Cover material: Stainless steel 14301
Height of cover: 17 mm
Surface: Polished SST
Locking: screwed
Load class: K 3 (EN 1253-1)
Rim width: 146 mm
Rim length: 146 mm
Shape of upper section: square
Upper section material: Stainless steel 14301
