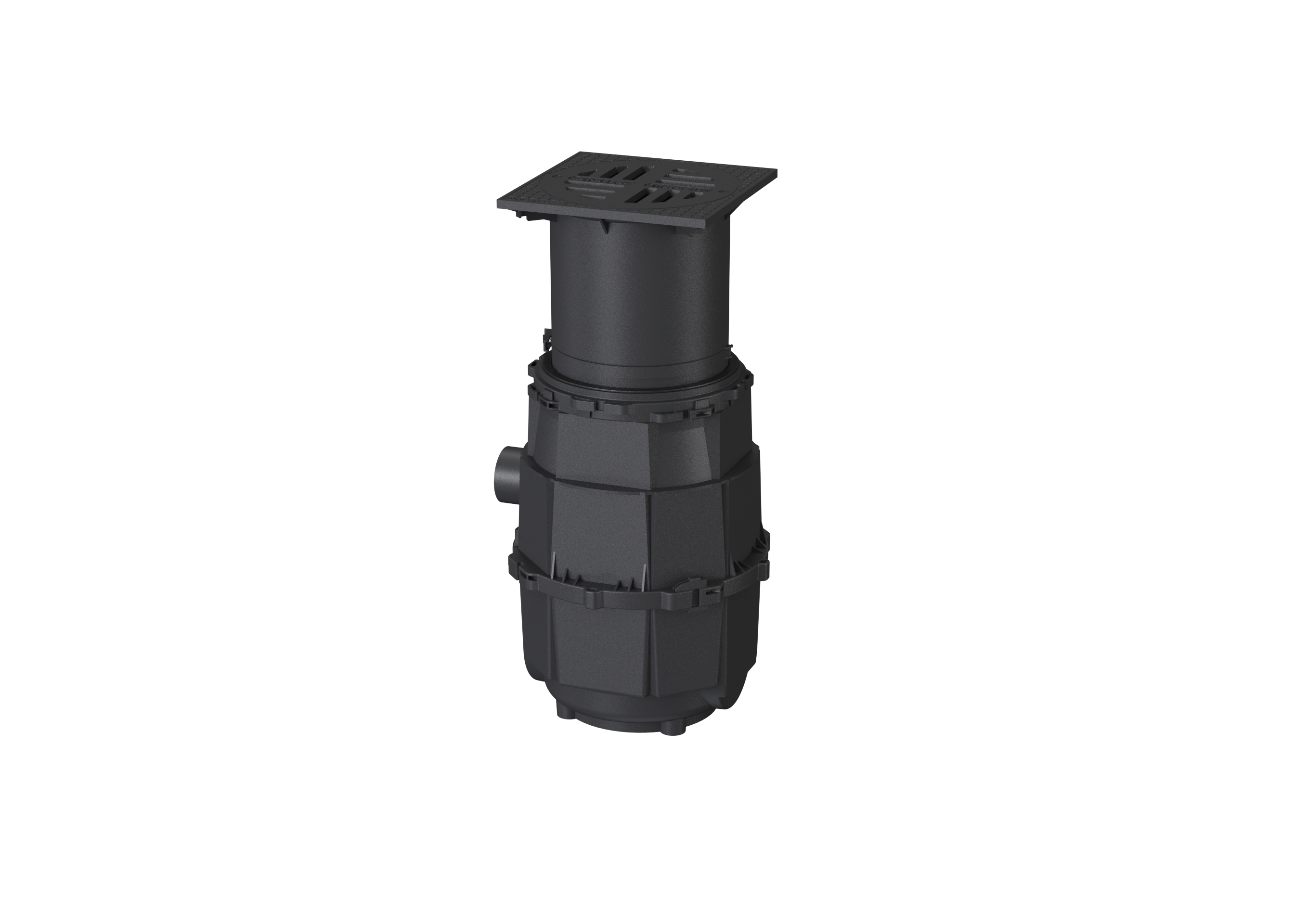

The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment.
Variant
System: 400
Heating: without
Contents of sludge trap: yes
General characteristics
Colour: black
Standard: EN 752
Nominal size (DN): 100
Outer diameter (OD): 110 mm
Odour trap: included

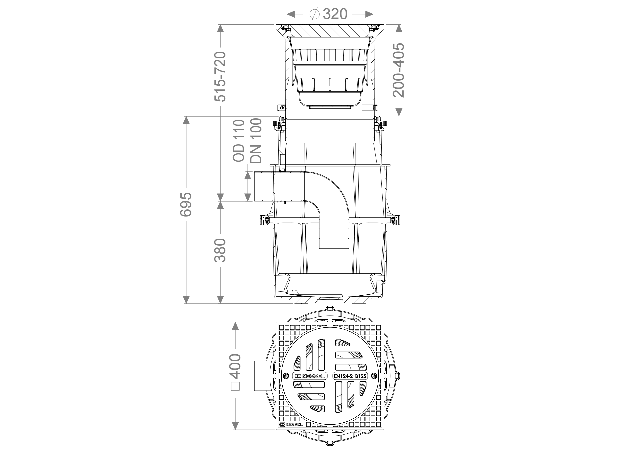

Dimensions
Net weight: 47 kg
Gross weight: 47 kg
Cutout dimension, width: 535 mm
Cutout dimension, length: 585 mm
Installation depth: 515 - 720 mm
Type of height adjustability: vertically adjustable upper section
Packaging dimension: length: 800 mm
Packaging dimension: width: 700 mm
Packaging dimension: height: 1025 mm
Tank/drain body
Number of outlets: 1
Material of drain body: Polymer
Socket version: lateral
Coverage features
Type of cover: Round slotted cover
Cover material: Grey iron
Colour of cover: black
Width of cover: 400 mm
Length of cover: 400 mm
Surface: EDM
Load class: B 125 (EN 124)
Rim width: 400 mm
Rim length: 400 mm
Shape of upper section: square
Contents of sludge trap: yes
