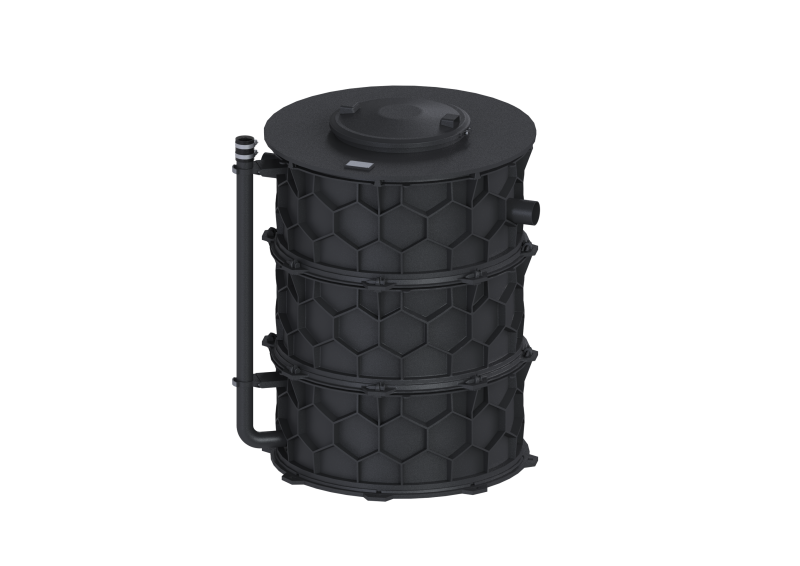

The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty.
Variant
Chamber system: three-piece chamber
Disposal variant: Direct
Shredder-Mix-System: no
Sludge bucket: no
Nominal size (NS): 4,00
SonicControl: no
Disposal system: Disposal connection
Refill inlet in accordance with DIN 1988: no
Type of disposal: manual
General characteristics
Material: PE
Standard: EN 1825: 2004, DIN 4040-100
Installation situation: free-standing installation
Delivery state: Installation-ready (connection parts must be connected on site)
Dimensions
Net weight: 120 kg
Gross weight: 138 kg
Height centre section: 500 mm
Height tank bottom up to centre section: 550 mm
Height centre section to top edge of tank: 580 mm
Required access area, length: 1240 mm
Required access area, width: 1683 mm
Required access area, height: 1300 mm
Packaging dimension: length: 1300 mm
Packaging dimension: width: 1240 mm
Packaging dimension: height: 1633 mm
Tank/drain body
Distance pipe bottom outlet to tank bottom: 1175 mm
Distance pipe bottom inlet to tank bottom: 1245 mm
Outlet nominal size (OD): 110 mm
Outlet nominal size (DN): 100 mm
Inlet nominal size (OD): 110 mm
Inlet nominal size (DN): 100 mm
Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS
Coverage features
Type of cover: Cover
Cover material: Polymer
Colour of cover: black
Locking: Quick-release closure
Tightness: odour-tight
Wastewater contents
Separator contents: 560 l
Contents of sludge trap: 400 l
Storage quantity of grease: 160 l
Control
Control unit: no
