The separator for light liquids is suitable for installation in the ground and is equipped with a removable coalescence insert. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. Two surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. On-site connection to inlet and outlet with PE-HD pipes according to DIN 19537, PVC pipes according to DIN 19534, PP or AS on factory stainless steel pipe sockets possible. When selecting the appropriate seals and pipe materials, the applicable standards must be observed. 20 year polyethylene warranty.
Variant
Nominal size (NS): 10,00
Type of disposal: manual with suction hose
Coalescence insert: yes
Load-bearing capacity (DIN 19901): E4
General characteristics
Material: PE
Installation situation: underground installation
Delivery state: Installation-ready (connection parts must be connected on site)
Approval: Z-83.8-54
Separator class: System A (formerly class I)
Range of applications for light liquids: from 0.85 to 0.95 g/cm3

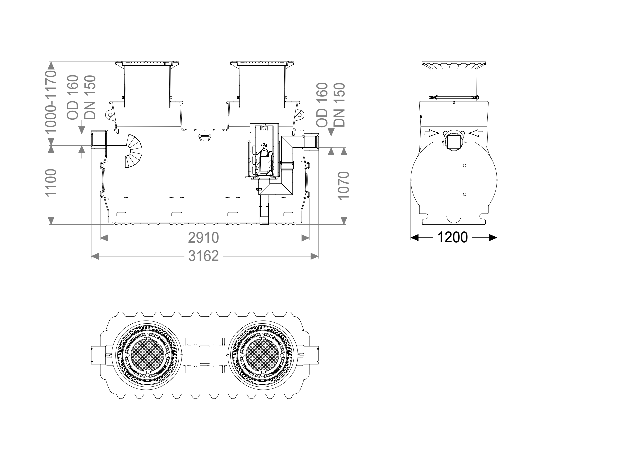

Dimensions
Net weight: 556 kg
Gross weight: 564 kg
Groundwater resistant from lower edge of base section: 1320 mm
Excess depth: 100 mm
DSC: 700 - 1.500
T-DSC: 155
Max. length: 3162 mm
Installation depth: 840 - 1240 mm
Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees
Required access area, length: 2910 mm
Required access area, width: 1200 mm
Packaging dimension: length: 2860 mm
Packaging dimension: width: 1200 mm
Packaging dimension: height: 2300 mm
Tank/drain body
Distance pipe bottom outlet to tank bottom: 1070 mm
Distance pipe bottom inlet to tank bottom: 1110 mm
Outlet nominal size (OD): 160 mm
Outlet nominal size (DN): 150 mm
Inlet nominal size (OD): 160 mm
Inlet nominal size (DN): 150 mm
Clear width of entry (LW): 600 mm
Coverage features
Type of cover: Cover plate
Cover material: Grey iron
Colour of cover: black
Width of cover: 680 mm
Height of cover: 50 mm
Length of cover: 680 mm
Locking: unlocked
Load class: D 400 (EN 124)
Tightness: odour-tight and surface water resistant
Wastewater contents
Total volume: 2600 l
Contents of sludge trap: 1500 l
Storage quantity of light liquid: 267 l
